Double edge milling machine
Jiunuo’s edge milling machines are specailly for the preparing bevel edge, U- grooves before welding. They are featured by high-effiency, low operation fatigue and low energy comsumption with the wide application in the fields of pressure vessels, vessels, boilers, shipbuilding and so on.
Contact us
Product parameters
Effective milling length 4000 6000 9000 12000 16000 20000
Applicable plate thickness 6-50mm
Milling angle -45~0 and 0~45
Center height 900mm
Main milling head Taiwan elong MU6S1-EH1
Speed: 100155220325465680
Euroma ?F.55.600RC TOOL HOLDER ISO 50
Speed controlled by inverter
Milling Feeding speed 0.1m/min- 1.6m/min
Feed motor 2.2kw (controled by inverter )
Fast feeding and retracting speed 4m/min
Hydraulic motor 5.5kw
Rated Hydraulic system pressure 3.5MPA
Screw jacks for clamping the plate 6 8 12 14 22 26
Hydraulic jacks for clamping the plate 7 9 13 15 23 27
Overall dimension

Length

7220 8200 11200 14200 21400 23500
Width 1520 1520 1520 1520 1520 1520
Height 1850 1950 2050 2150 2700 3400

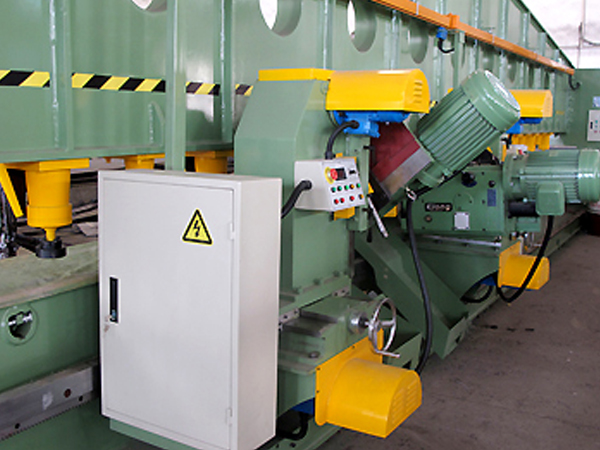

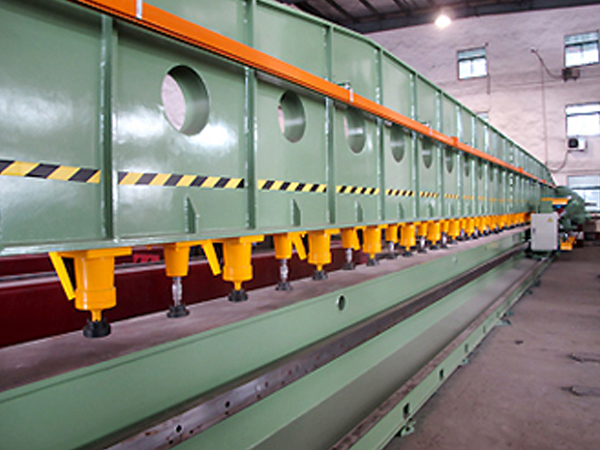

Scene photos
