Anti –drift welding rotator
Relying on the design of the conventional rotator, the anti-drift deivce is an advanced feature that controls the longitudinal translation of the vessel during the rotations by modifying the idler rotator into elevating type.
A test device (precise small roller) is used for constantly in contact with the vessel end. Any little creep translation of the vessel will cause the movement of the small roller, which as a feedback will be sent to the control unit and it drives the action of the idler rotator for correcting the creep translation. The anti-drift accuracy will be less than ±2mm.
Contact us
Product parameters

Model

CZE-100

CZE-300

CZE-500

CZE-800

CZE-2000

Load capacity

100

300

500

800

2000

Roller dia mm

Φ500x200

Φ800×300

Φ1000×350

Φ1000×400

Φ1100×550

Rotation speed m/min

100-1000

100-1000

100-1000

100-1000

100-1000

Job diameter mm

800-6000

1000-6500

1200-6500

1200-8000

4000-6300

Motor power kw

2X4

2x5.5

2x7.5

2x11

2x7.5

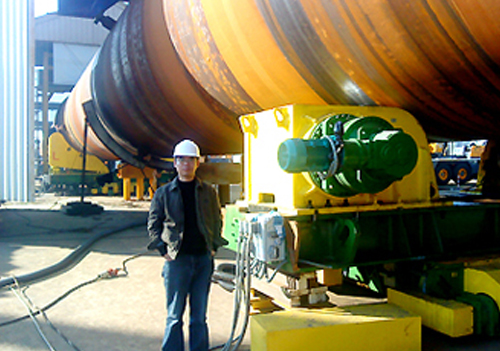

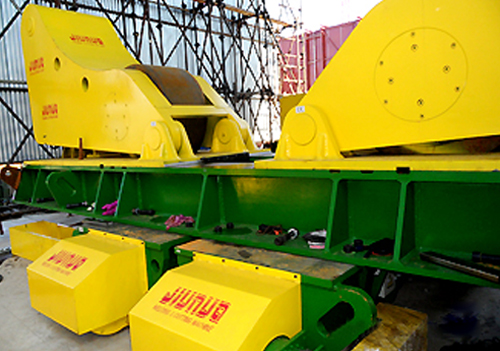

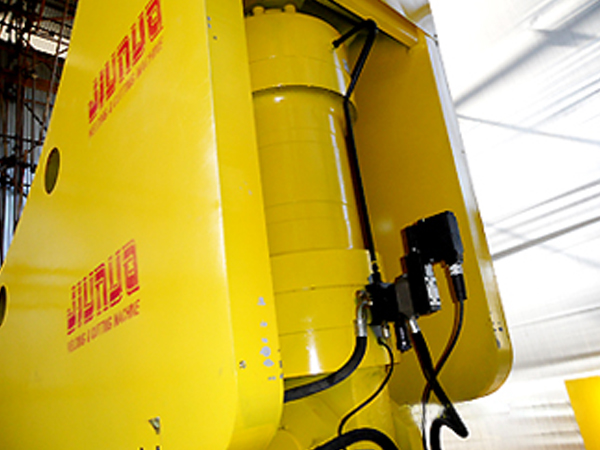

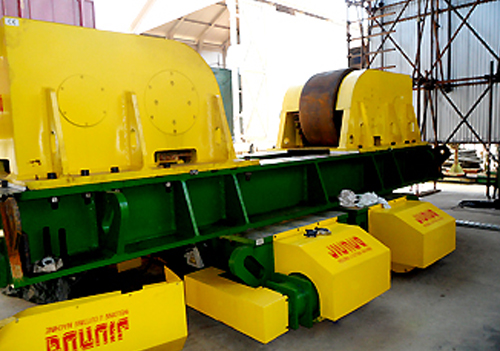

Scene photos
