Conventional welding positioner

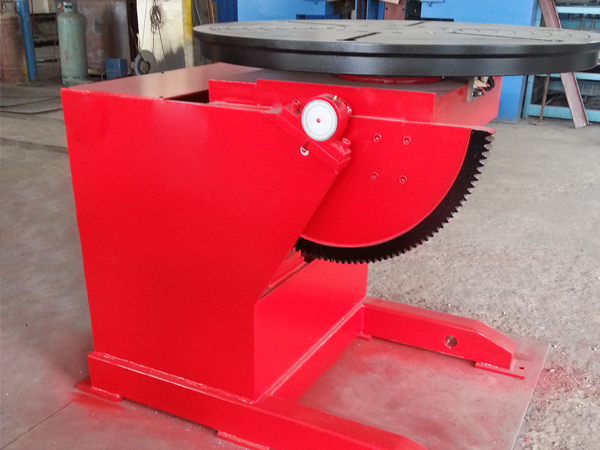

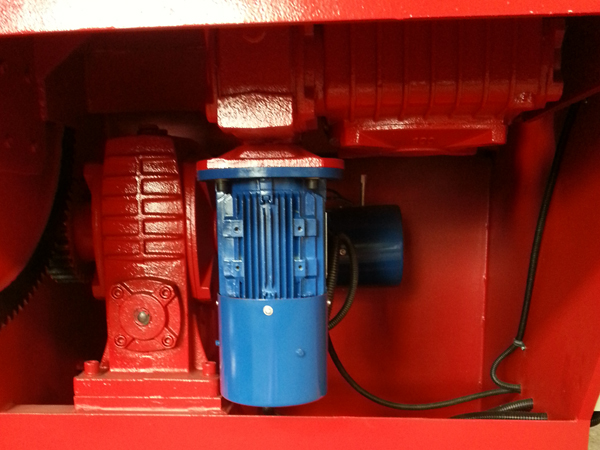

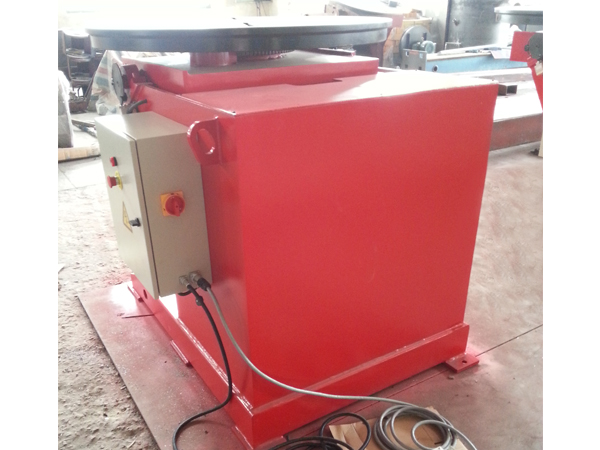

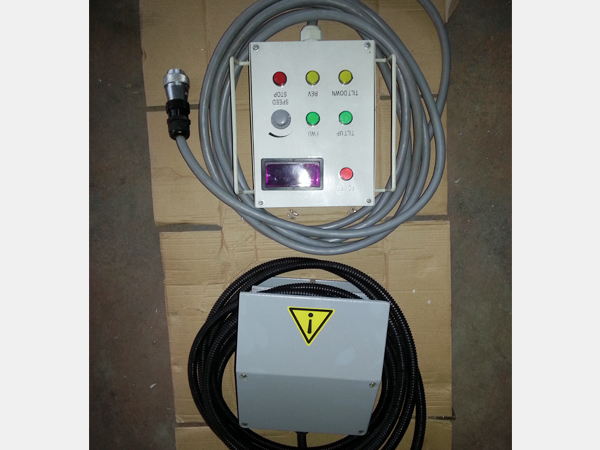

ZHB series welding positioners are designed to manipulate a non-cylindrical work-piece so as to present the weld instantly in the down hand position to the operator or welding head.

The positioners are suitable for all kinds of automatic and manual welding, or pipe lateral butt joint, shaft, dish type, vessel, tank welding and widely used in the fields of pressure vessel, metallurgy, power, chemical, metal structures, etc.

Product parameters

Model	ZHB01	ZHB03	ZHB06	ZHB12	ZHB30	ZHB50	ZHB100
Load Capacity - kgs	100	300	600	1200	3000	5000	10000
Max Centre of Gravity - mm	150	100	100	100	150	200	250
Eccentricity - mm	100	100	100	150	200	300	400
Table diameter -mm	400	600	1000	1200	1400	1500	2000
Rotation speed -rpm	0.1-1	0.2-2	0.09-0.9	0.05-0.5	0.05-0.5	0.05-0.5	0.05-0.2
Rotation motor -kw	0.18	0.18	0.75	1.1	1.5	1.5	3
Tilt speed - rpm	Manual	Manual	1.1	0.67	0.23	0.14	0.14
Tilt motor -kw	/	/	075	1.1	1.5	2.2	5.5
Degree of Tilt (Table)	0-90	0-90	0-90	0-90	0-120	0-120	0-120
