Light duty welding manipulator

Features and characteristics

+ The Manipulator comprises: base, column, saddle, boom, travelling trolley (optional)

+ used independently or synchronized connected with welding rotators, positioners and other assistant welding equipments for longitunial and circular seam

+ suitable for MIG, SAW,STRIP CLADDING

+ match with inching device, flux recovery and travelling car, seam tracking system, arc length controller, and vedio camera

Product parameters

Specification	Heavy duty		Medium duty		light duty
Specification	5×6	4×5	3.5×5	3×4	2×2
Vertical travel(mm)	5000	4000	3500	3000	2000
Horizontal travel(mm)	6000	5000	5000	4000	2000
Suitable job dia(mm)	1000-5000	1000-4000	700-3500	700-3000	500-2000
Column rotation degree	±180°	±180°	±180°	±180°	manual ±360°
Boom elevating speed(m/min)	1	1	1	1	0.3
Boom stretching speed(m/min)	0.12-1.2	0.12-1.2	0.12-1.2	0.12-1.2	0.12-1.2
Travelling speed(m/min)	3	3	3	3	Manual
Rail inner distance(mm)	2000	2000	1730	1730	1000

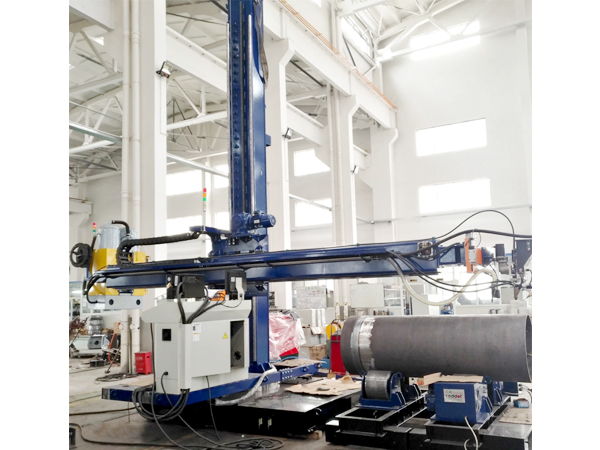

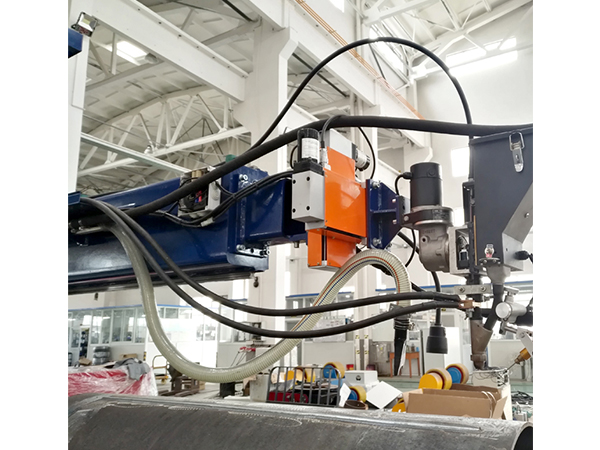

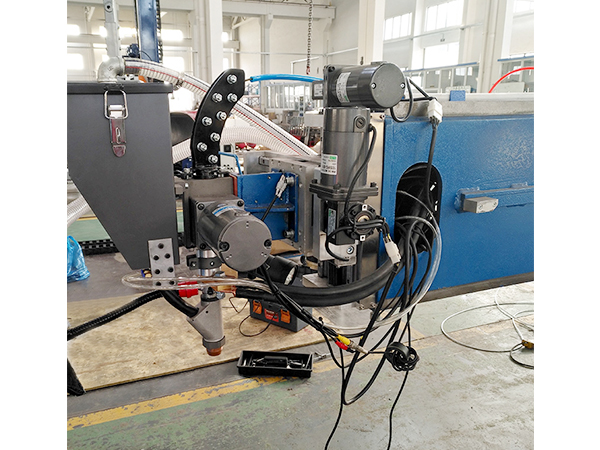

Scene photos
