Performance and characteristics

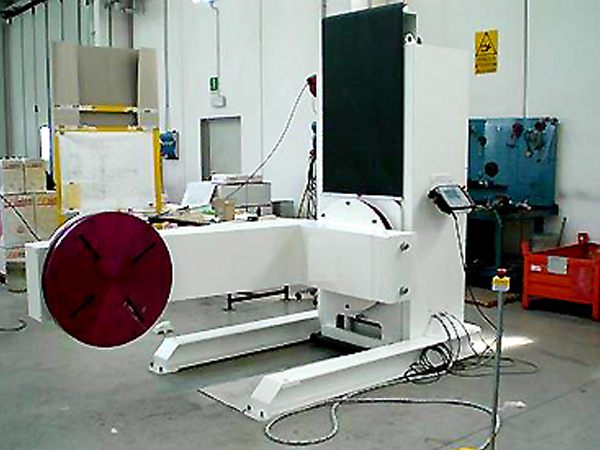

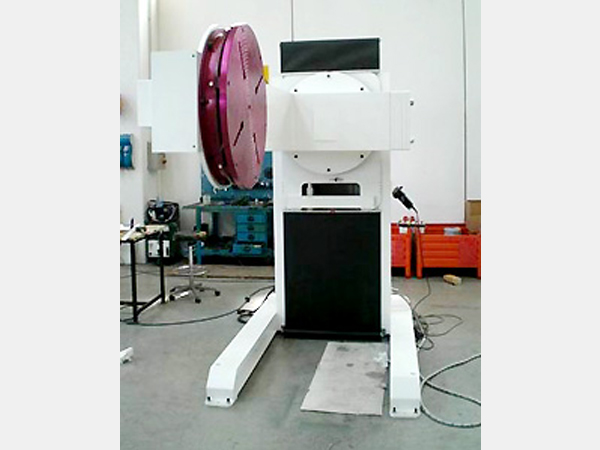

The rotation table is fitted at the end of L-shape frame, which achieves a 360 rotation of the table. This design is featured by flexibility and wide working area.
Contact us
| Model | Load capacity T | Tilt torque Nm | Tilt speed(r/min) | Rotation torque Nm | Rotation speed(r/min) |
| LB1.2 | 1.25 | 450 | 1.00 | 120 | 1.80 |
| LB2.5 | 2.5 | 600 | 0.80 | 250 | 1.50 |
| LB4 | 4.0 | 900 | 0.70 | 400 | 1.20 |
| LB6 | 6.0 | 1500 | 0.60 | 600 | 0.90 |
| LB10 | 10 | 2400 | 0.50 | 900 | 0.60 |
