Self-aligning welding rotator

Self-aligning rotator is used for job rotation via friction of the drive roller and idler roller. It adjusts automatically for the job loading. It is mainly applicable for the welding, sand blasting, and assembling of the cylindar job such as pipeline, vessel, boiler, oil tank to realize the inner or outer longitudinal and circumferential welding.

Product parameters

Model	Load capacity(kg)	Job diameter(mm)	Diameter and width of the wheel(mm)		Rotation speed(m/h)	Power of motor(kw)
Model	Load capacity(kg)	Job diameter(mm)	Rubber roller dimension	Rubber roller dimension	Rotation speed(m/h)	Power of motor(kw)
HGZ-05	5000	Φ250-2300	Φ250×100	2×Φ240×20	6-60	0.75
HGZ-10	10000	Φ320-2800	Φ300×120	2×Φ290×25	6-60	1.1
HGZ-20	20000	Φ500-3500	Φ350×120	2×Φ340×30	6-60	1.5
HGZ-40	40000	Φ600-4200	Φ400×120	2×Φ390×40	6-60	3
HGZ-60	60000	Φ750-4800	Φ450×120	2×Φ440×50	6-60	4
HGZ-80	80000	Φ850-5000	Φ500×120	2×Φ490×60	6-60	4
HGZ-100	100000	Φ1000-5500	Φ500×120	2×Φ490×70	6-60	5.5
HGZ-150	150000	Φ1000-6500	Specified		6-60	2×3
HGZ-250	250000	Φ1000-7500			6-60	2×5.5
HGZ-500	500000	Φ1000-8500			6-60	2×7.5

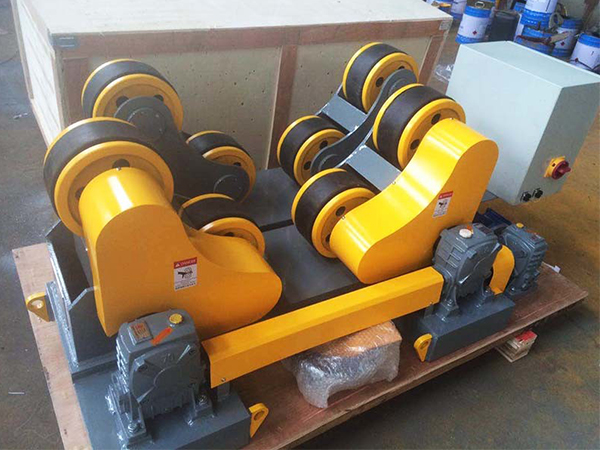

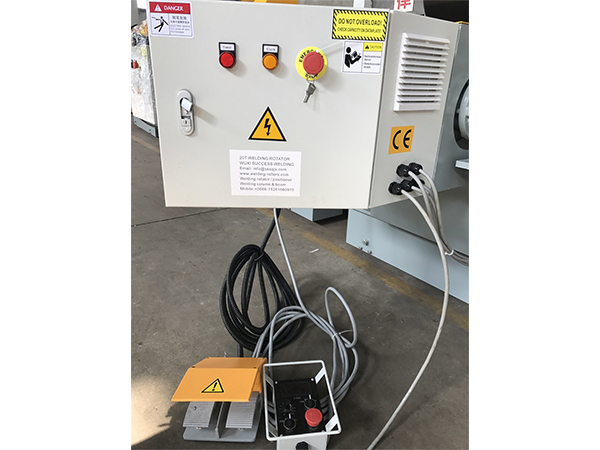

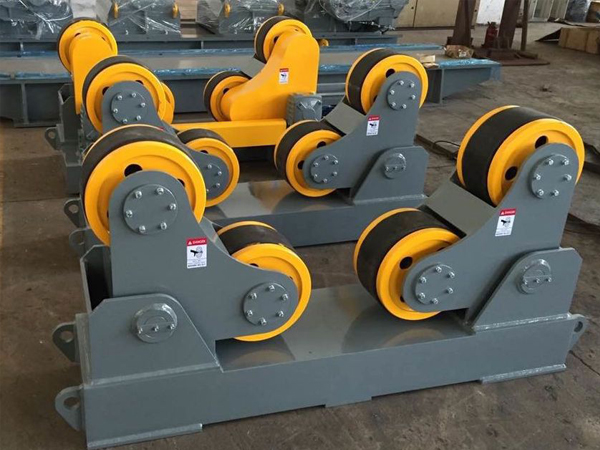

Scene photos
