Table plasma cutter_Wuxi Jiunuo Welding & Cutting Technology Co., ltd.

PRODUCT

Table plasma cutter

Product features:

1.The synchronic double drivers are adopted in longitudinal linear guide track, it is more stable and more precise compared with the gantry type

2.The light design of crossbeam has a good quality,light weight and compact structure

3.It is equipped with a dust c1eaning device.

Product parameters

Item	Specification
Track Span	2000 - 2500 mm
Track Length	4000 -8000 mm
Transverse effective cutting	1500 mm
Longitudinal effective cutting	3000 - 7000 mm
No of torches	According to customer requirement
Cutting speed	0 - 6000 mm/min
Unloading speed	0 - 18000 mm/min
Torch Lifting Range	150mm
Plasma cutting thickness	Depends on plasma power supply

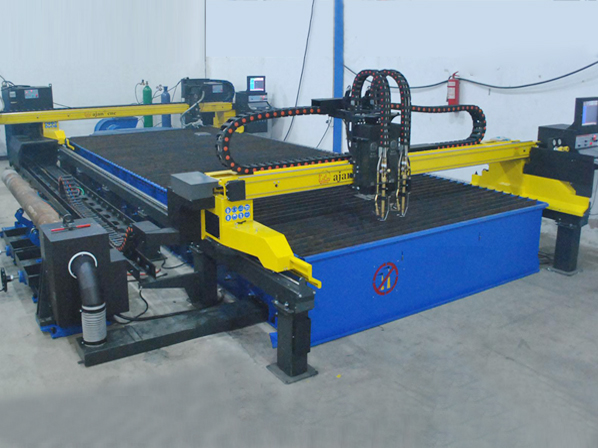

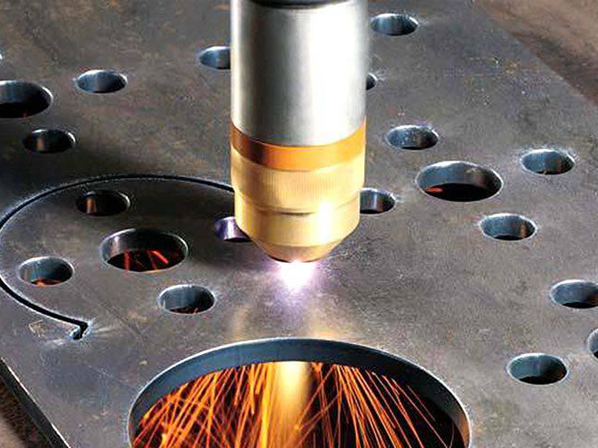

Scene photos
