PRODUCT

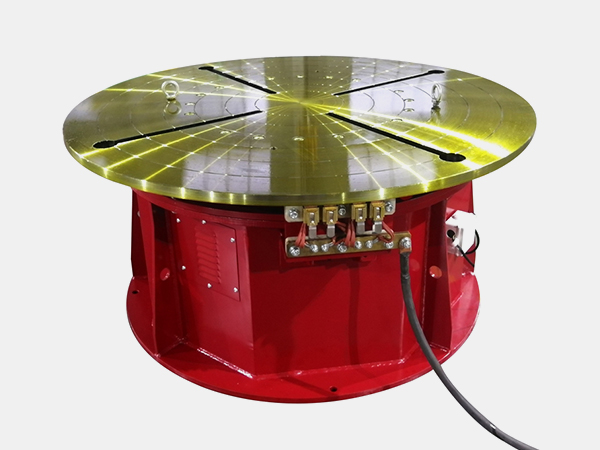

Welding turntables
Welding turntables are non-tilt welding positioners, widely used in sprial welding and Spherical Head cutting. It mainly comprehends the base, turning table, drive motor, control box and foot pedal.
Contact us
Product parameters
Model HB01 HB03 HB06 HB12 HB30 HB50 HB100
Load Capacity - kgs 100 300 600 1200 3000 5000 10000
Max Centre of Gravity - mm 150 100 100 100 150 200 250
Eccentricity - mm 100 100 100 150 200 300 400
Table diameter -mm 400 600 1000 1200 1400 1500 2000
Rotation speed - rpm 0.1-1 0.2-2 0.09-0.9 0.05-0.5 0.05-0.5 0.05-0.5 0.05-0.2
Rotation motor -kw 0.18 0.18 0.75 1.1 1.5 1.5 3

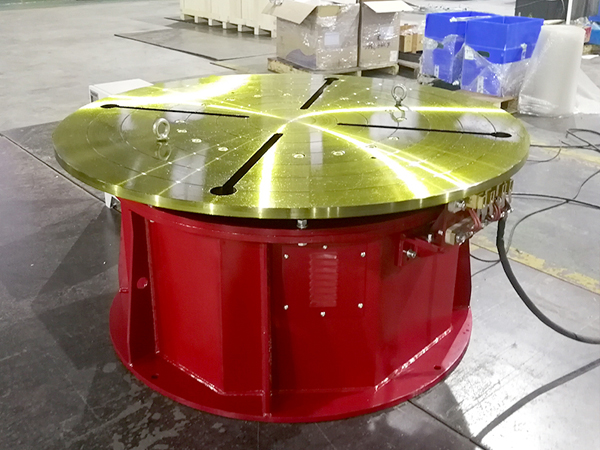

Scene photos
